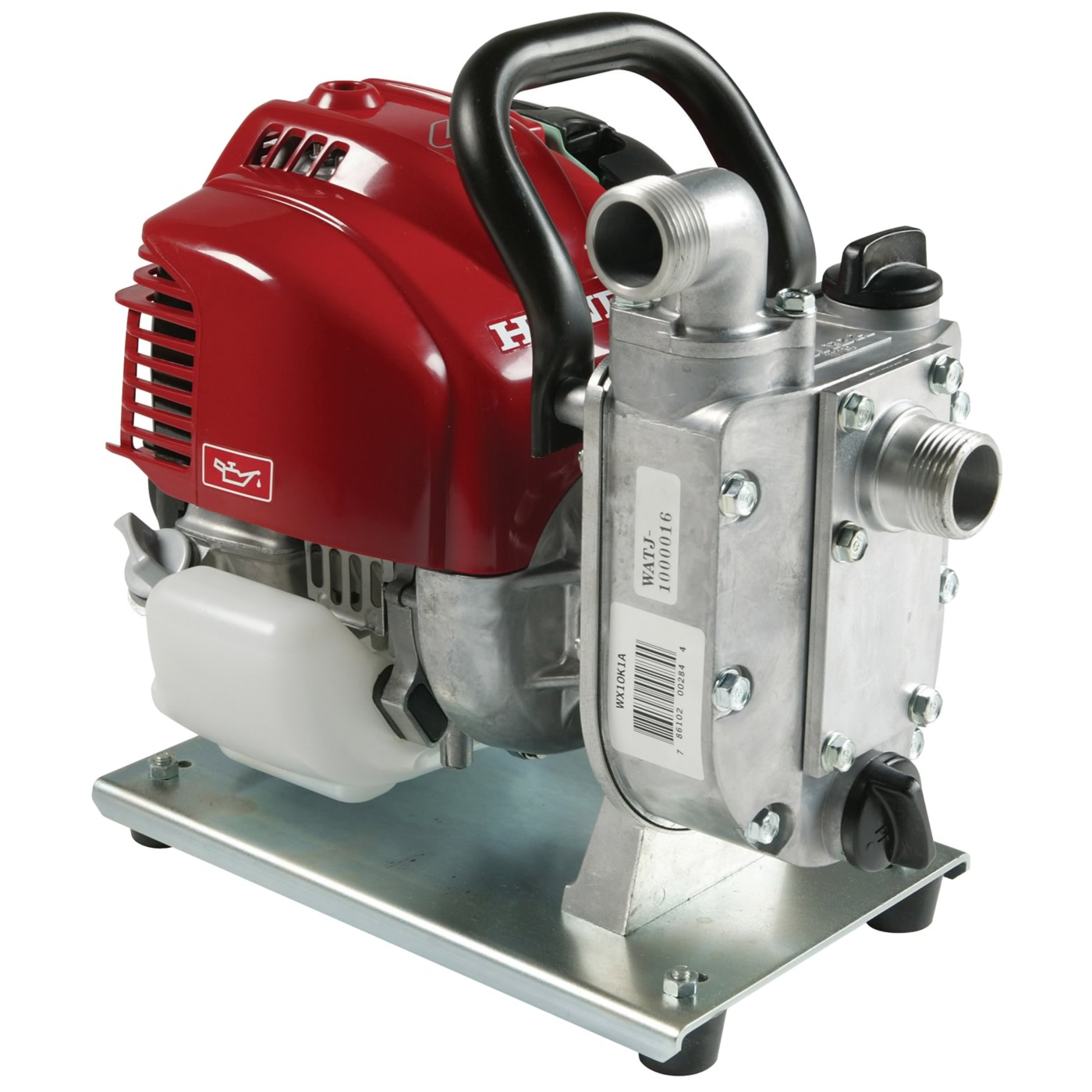

Honda WX10

Lightweight general purpose 1" pump
• Easy starting Honda mini 4-stroke engine
• 37 gal./min capacity
• Weighs only 13.4 lbs.
• Garden hose adaptor, suction hose, clamps, and strainer included
Engine GX25
Displacement 25cc
Bore and stroke 1.4" x 1.0"
Compression Ratio 8.0:1
Oil Alert N/A
Pump type General purpose Centrifugal Self-priming
Volute Aluminum
Impeller Aluminum
Mechanical Seal (Pump case / impeller) Carbon/Ceramic
Priming time 80 sec. at 16.4 ft.
Drive system Direct
Discharge capacity 37 gals./min.
Suction port diameter 1.0" NPT
Discharge port diameter 1.0" NPT
Total head lift 118 ft.
Suction head lift 26 ft.
Maximum pressure 51 psi
Solids handling N/A
Dimensions (LxWxH) 12.8" x 8.7" x 11.8"
Dry weight 13 lbs.
Fuel Capacity 0.50 qt
Run Time @ Max Discharge 1.0 hr
Strainer Part # 78325-YB0-711
Residential Warranty 2 years
Commercial Warranty 1 year
