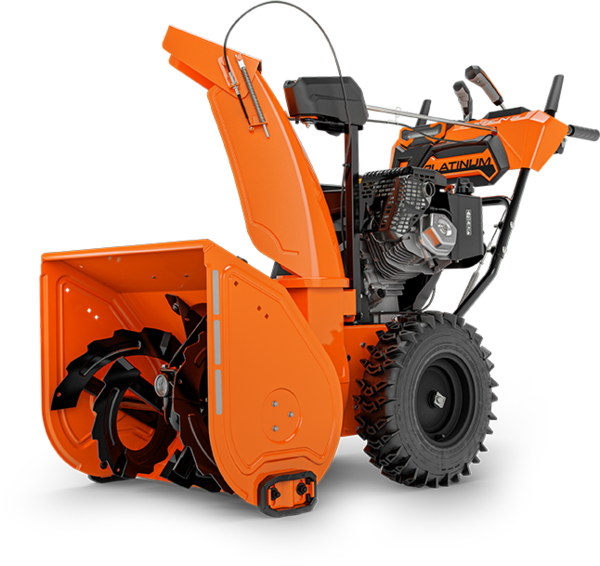

Ariens PLATINUM 24

OVERVIEW

Easy push-button electric start Ariens® AX 369cc engine
Wide 24" clearing width that moves 73 tons of snow per hour
Premium features like an LED headlight, handwarmers, a remote deflector, electric start, and a one-hand interlock.

TITLE
PLATINUM 24 SHO
MODEL NUMBER
921063
POWER TRAIN
ENGINE
Ariens AX®
STARTING SYSTEM
120v / Electric
STEERING
Auto-Turn
DRIVE TYPE
Disc-O-matic
SPEEDS
6 Forward/2 Reverse
TIRE SIZE
16 In
TIRE TYPE
Directional Snow Tread
CLEARING SPECS
CLEARING WIDTH (IN/CM)
24 In
HOUSING HEIGHT
21 In
THROWING DISTANCE
3 ft - 55 ft
CHUTE ROTATION
Quick Turn
CHUTE TURNING RADIUS
200
DEFLECTOR CONTROL
In-Dash Lever
STAGE TYPE
Two Stage
AUGER DIAMETER
14 In
AUGER TYPE
Steel Serrated
IMPELLER PROFILE
High Speed Steel 3 Blade
IMPELLER DIAMETER
14 In
SKID SHOES
Steel Reversible
SCRAPER BAR
Steel Adjustable
GEAR CASE
Cast Iron
DIMENSIONS
LENGTH
58.3 In
WIDTH
26.4 In
HEIGHT
45.9 In
WEIGHT (ASSEMBLED)
267 lb
WARRANTIES
PRODUCT WARRANTY
3 years residential use. 90 days commercial use
GEAR CASE WARRANTY
5 Year Consumer, 1 Year Commercial
