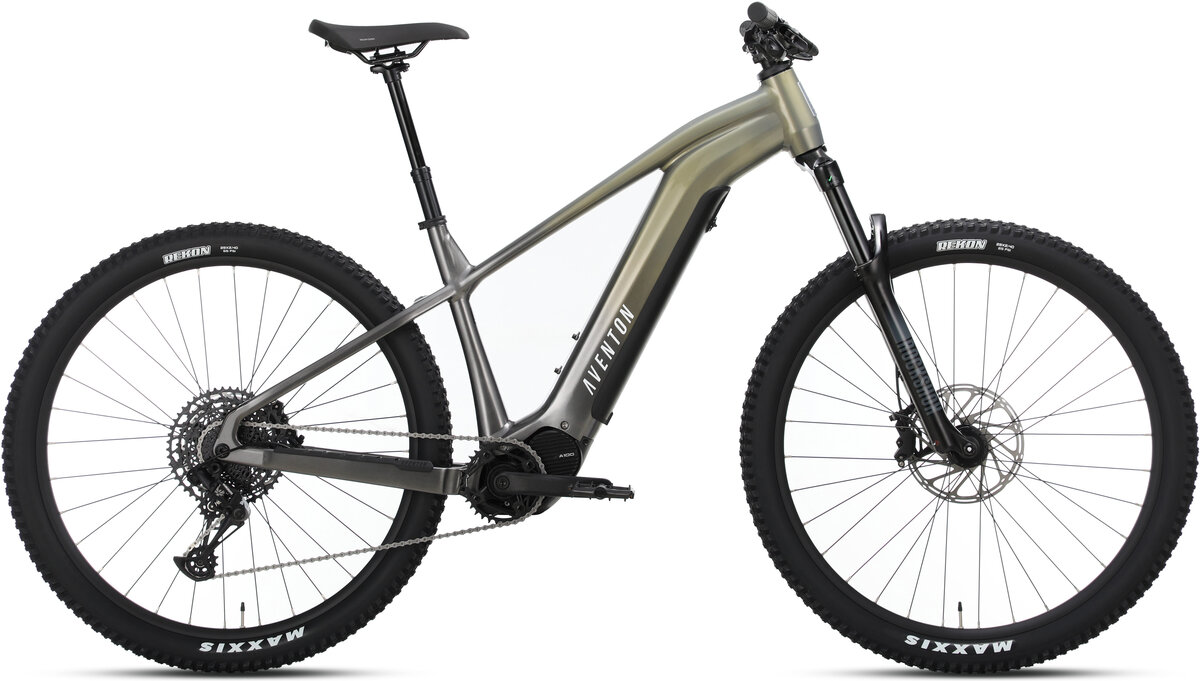

Aventon Ramblas

Carve out the uncommon route with Ramblas, Aventon’s first-ever electric mountain bike (eMTB) with an intelligent mid-drive motor. Rugged and reliable, this hardtail, all-terrain ebike offers the ultimate comfort on mountain trails or city streets. Engage its three pedal assist levels, top speed of 20 mph, and range of up to 80 miles to roam, ramble, and revel in the more dynamic side of the ride. With Ramblas, it’s mountain time, all the time.

Aventon’s Ramblas comes equipped with a first-ever mid-drive motor for the Aventon line-up. The mid-drive is Aventon-designed offering riders personalized tuning capabilities through the Aventon app for an amplified natural riding experience. Adjust the three PAS levels to fine-tune its overall rideability.

GENERAL INFO
MODEL
Ramblas eMTB
WEIGHT
54lbs, size large, w/o pedals
TOTAL WEIGHT LIMIT
300 lbs
IDEAL USE
Mountain Biking, Urban Riding
SPEED
20 MPH
RANGE
Up to 80 miles
PEDAL ASSIST
3 Levels
RIDER HEIGHT
5'1" - 6'5"
FRAMESET
FORK
RockShox 35 Silver R 130mm travel. Coil, 44mm offset, 15x110 QR axle, 1.5" tapered steerer tube
FRAME
6061 Single-Butted Aluminum Alloy
FRAME STYLE
Step-Over
WHEELSET
HUBS
15x110 32H Front, 12x148 32H Rear
RIM
Double Wall Aluminum 32h Front & Rear
SPOKES
Black Stainless 13 Gauge
TIRES
S Maxxis Rekon 27.5x2.4", M/L/XL Maxxis Rekon 29x2.4"
TUBES
Butyl Rubber, Presta Valve
EBIKE SYSTEM
BATTERY
Aventon 708 WH. 36V LG 21700 cells.
CHARGER
42V 4A charger
DISPLAY
LCD Smart "Easy Read"
MOTOR
Aventon a100 mid-drive. 36v, 250W (sustained), 750W (peak), 100NM torque. IP67 rating
BRAKES
REAR BRAKE ROTOR
Sram 180mm 6 bolt
FRONT BRAKE ROTOR
Sram 200mm 6 bolt
BRAKES
Sram DB8 mineral 4 piston hydraulic disc brakes
DRIVETRAIN
REAR DERAILLEUR
Sram NX Eagle 1x12
PEDALS
9/16" Alloy Platform
CHAINRING
Sram Nx 34t
CASSETTE
Sram SX Eagle 1x12 11-50t
SHIFT LEVER
Sram NX Eagle 1x12 single click
COCKPIT
SEATPOST
150mm travel for size M-XL. 125mm travel for size S. 31.6mm ø. 395mm length
HANDLEBARS
35mm, 9° rise, 720mm width for size S, 760mm width for size M-XL
GRIPS
Lock on
STEM
35mm Ø, 40mm length
SEAT CLAMP
Aventon 34.9mm
INCLUDED ACCESSORIES
KICKSTAND
Included in accessory box
FRONT HEAD LIGHT
Included in accessory box
Technical Overview
Ramblas comes out of the box as a Class I ebike, with pedal assist and a top speed of 20 MPH. Aventon’s Ramblas is built to the IP67-rated standard. IP67 rating means it’s protected against the effects of immersion in water to a depth between 15 cm and 1 meter. IP67-rated products are referred to as waterproof vs only water-resistant, so you can cross creeks, and ride in rain and mud without worry. Aventon ebikes are not intended to be subjected to a pressurized spray. Do not use a pressure washer or sprayer to clean your ebike.
